concrete skin

Pixel facade design made from fibreC GFRC production offcuts, zero waste concept by Rieder
Pixel facade design made from fibreC GFRC production offcuts, zero waste concept by Rieder

Großformatige Platten aus Glasfaserbeton

Die leistungsfähigen, nur 13 mm dünnen Platten in verschiedenen Farben, Oberflächen und Texturen eröffnen einen großen Spielraum für die Gestaltung individueller Fassaden. Gleich einer Haut aus Beton zieht sich concrete skin in Kombination mit formparts geschmeidig über Gebäude, Ecken und Kanten. Das erzeugt einen einzigartigen Materialfluss.

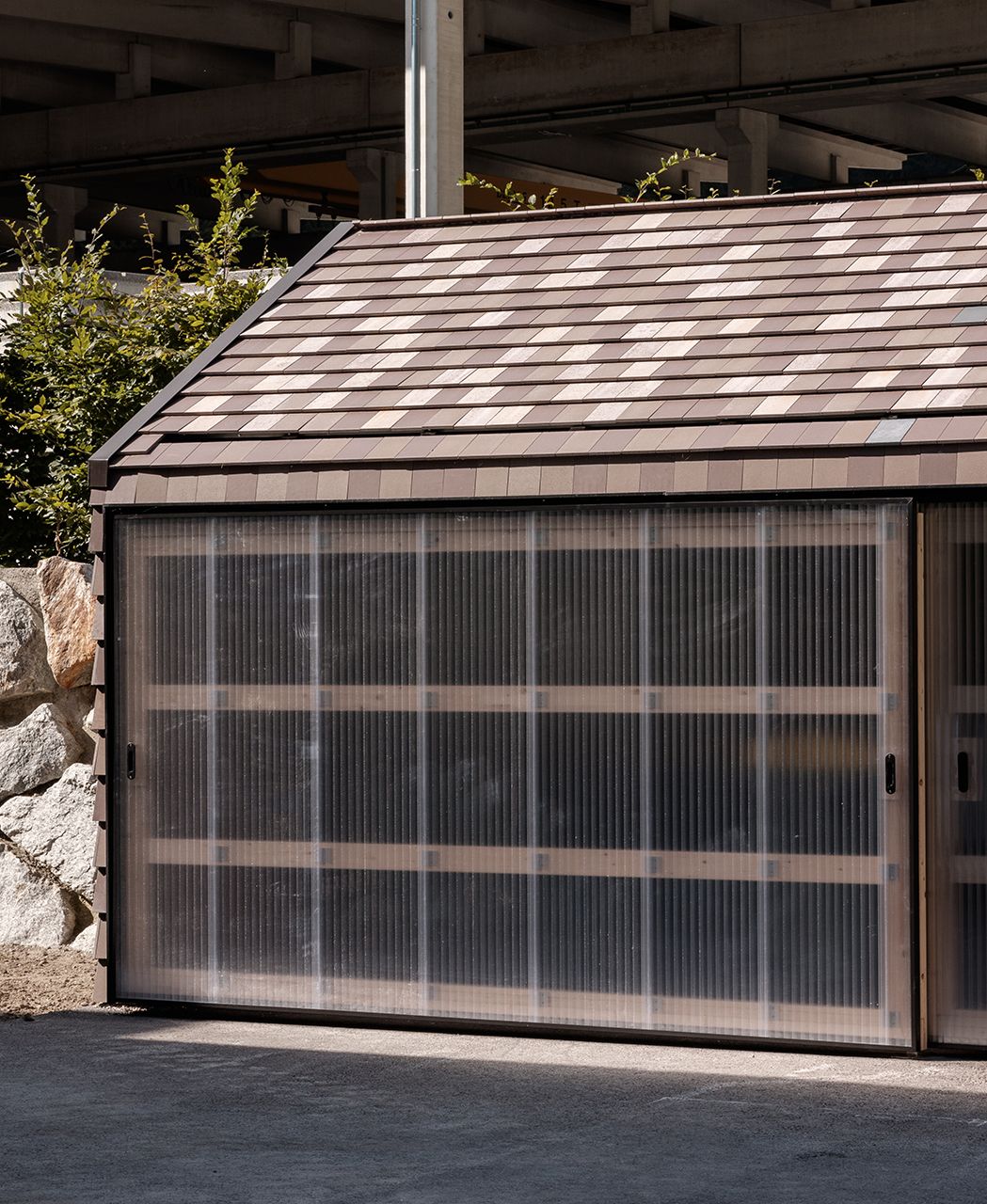

Pixel concrete shingles from recycled GFRC material, sustainable facade cladding by Rieder

Vivid shingles made of glassfibre reinforced concrete

A new product was developed to reduce waste in production: pixel. They are small-format concrete shingles produced from the residual material generated, for example, by cutting large-size panels. A software will take account of the amount of waste (scrapcrete) and generate project-specific design options for facades. It is not just about recycling residual materials, it is also about creating aesthetically appealing designs.

Großformatige Platten aus Glasfaserbeton

Die leistungsfähigen, nur 13 mm dünnen Platten in verschiedenen Farben, Oberflächen und Texturen eröffnen einen großen Spielraum für die Gestaltung individueller Fassaden. Gleich einer Haut aus Beton zieht sich concrete skin in Kombination mit formparts geschmeidig über Gebäude, Ecken und Kanten. Das erzeugt einen einzigartigen Materialfluss.

Großformatige Platten aus Glasfaserbeton

Großformatige Platten aus Glasfaserbeton

The elements made of glassfibre reinforced concrete withstand extreme loads. Due to their robust properties, the panels are weather-resistant and have a long service life.

Depending on how the concrete surface is treated, the material is given an individual character both visually and to the touch. Colours on matt surfaces appear more saturated, while blasting makes them less intense.

Products made of fibreC guarantees absolute fire resistance: fire rating A1 - “non-combustible“ approx. according to BBA Agrément Certificate 16/5362 for Great Britain and A2-s1,d0 - “non-combustible“ approx. according to abZ Nr. Z-31.4.166 for Germany.

With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.

The elements made of glassfibre reinforced concrete withstand extreme loads. Due to their robust properties, the panels are weather-resistant and have a long service life.

Products made of fibreC guarantees absolute fire resistance: fire rating A1 - “non-combustible“ approx. according to BBA Agrément Certificate 16/5362 for Great Britain and A2-s1,d0 - “non-combustible“ approx. according to abZ Nr. Z-31.4.166 for Germany.

Depending on how the concrete surface is treated, the material is given an individual character both visually and to the touch. Colours on matt surfaces appear more saturated, while blasting makes them less intense.

With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.

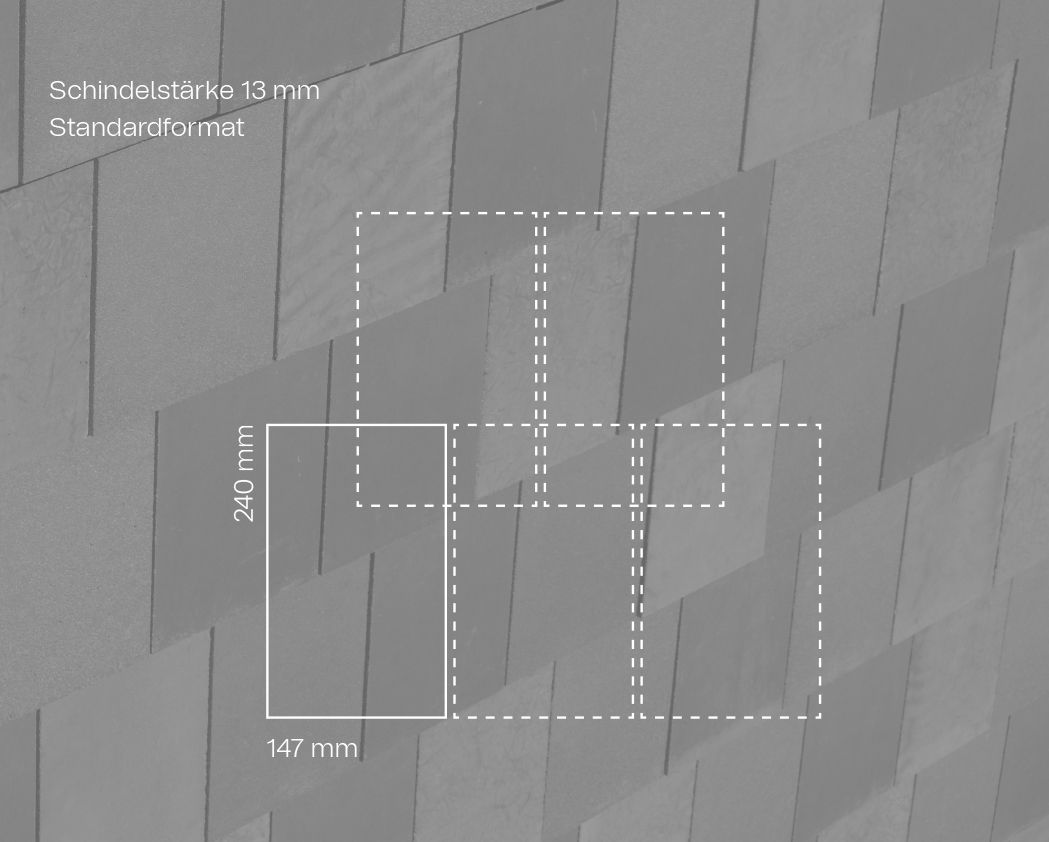

Standard pixel size for sustainable facade

Mit den vier kuratierten Farbwelten bricky, timber, pietra und greyscale bietet Rieder eine Auswahl an aufeinander abgestimmten Farbtönen, um möglichst authentische Fassaden im Einklang mit der Natur und ihrer Umgebung zu schaffen. Die unterschiedlichen Oberflächen, Texturen und Formate verleihen der Gebäudehülle mehr Lebendigkeit und Tiefe. Farbschwankungen innerhalb eines Farbtons sind gewollt und verstärken die Lebendigkeit des Baustoffs Beton. Jede Farbe ist in den Oberflächen ferro, ferro light und matt erhältlich.

Mit den vier kuratierten Farbwelten bricky, timber, pietra und greyscale bietet Rieder eine Auswahl an aufeinander abgestimmten Farbtönen, um möglichst authentische Fassaden im Einklang mit der Natur und ihrer Umgebung zu schaffen. Die unterschiedlichen Oberflächen, Texturen und Formate verleihen der Gebäudehülle mehr Lebendigkeit und Tiefe. Farbschwankungen innerhalb eines Farbtons sind gewollt und verstärken die Lebendigkeit des Baustoffs Beton. Jede Farbe ist in den Oberflächen ferro, ferro light und matt erhältlich.

Großformatige Platten aus Glasfaserbeton

Die leistungsfähigen, nur 13 mm dünnen Platten in verschiedenen Farben, Oberflächen und Texturen eröffnen einen großen Spielraum für die Gestaltung individueller Fassaden. Gleich einer Haut aus Beton zieht sich concrete skin in Kombination mit formparts geschmeidig über Gebäude, Ecken und Kanten. Das erzeugt einen einzigartigen Materialfluss.

Großformatige Platten aus Glasfaserbeton

Die leistungsfähigen, nur 13 mm dünnen Platten in verschiedenen Farben, Oberflächen und Texturen eröffnen einen großen Spielraum für die Gestaltung individueller Fassaden. Gleich einer Haut aus Beton zieht sich concrete skin in Kombination mit formparts geschmeidig über Gebäude, Ecken und Kanten. Das erzeugt einen einzigartigen Materialfluss.

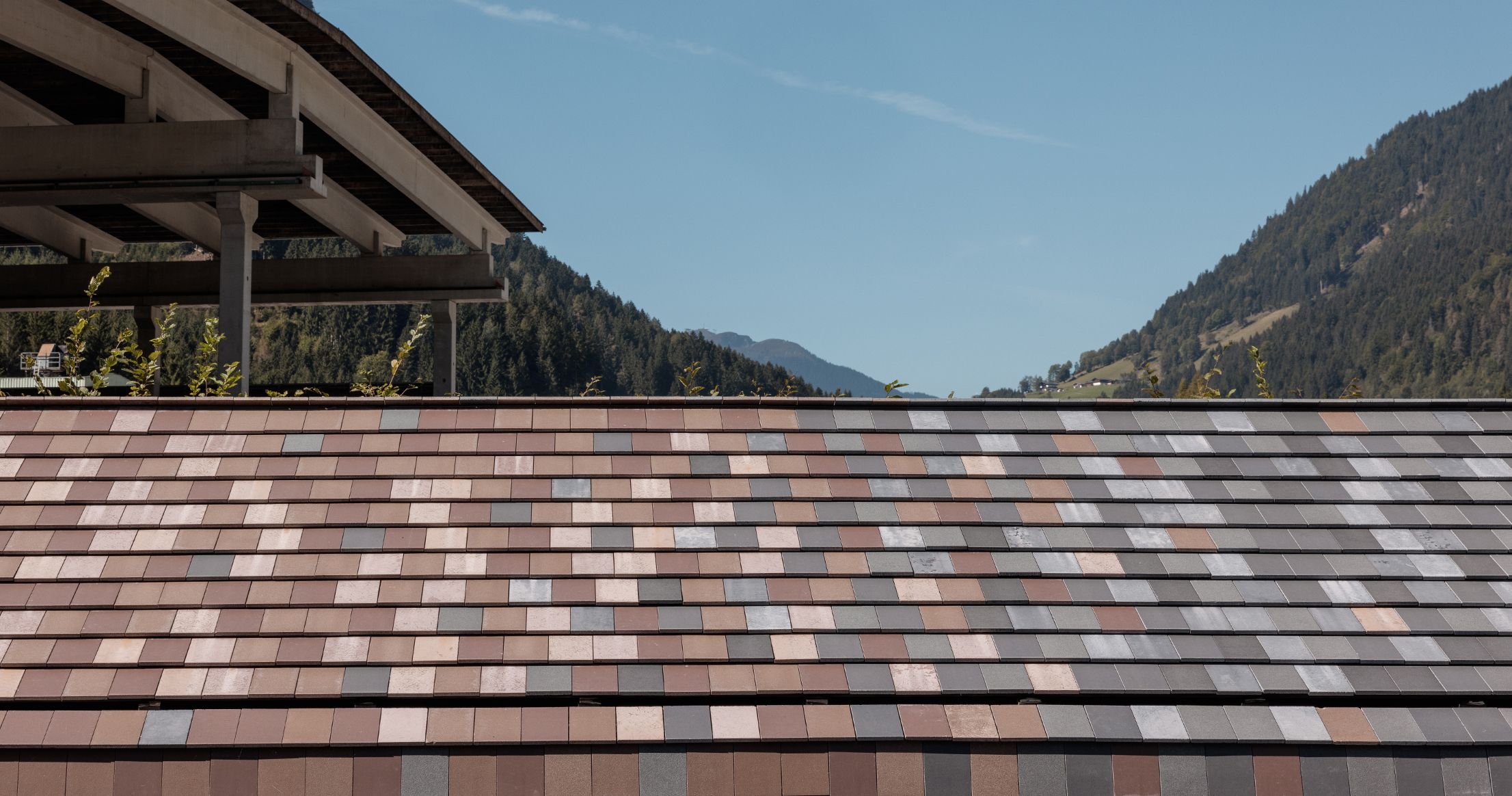

Close-up of Pixel facade elements made from fibreC production offcuts by Rieder

Installation

pixels are installed in a similar way to a shingle facade made of wood. Each shingle is individually inserted into a clamping rail and fastened with screws or rivets. The overlapping shingles conceal the screw. Other mounting options are available on request. Due to the shingles overlapping, 20% more sqm of pixel is required for a facade area (e.g. facade area of 100 sqm -> 120 sqm pixel). Everything from a single source - The mounting system with clamping rails that Rieder developed enables simple and quick installation. The delivery content includes the secondary supporting structure (profiles, clamping rails) made from aluminium, screws and pixels. On request, the pixels come pre-drilled, which makes them quicker to install at the construction site.

Großformatige Platten aus Glasfaserbeton

Großformatige Platten aus Glasfaserbeton

KONFIGURIEREN
Product range
Colour charts
Sustainability (ESG)
pixel data sheet
Product range
Sustainability (ESG)
Colour charts
pixel data sheet

Großformatige Platten aus Glasfaserbeton

The 13 mm thin facade panels are also available in oversize and create a uniform building envelope.

The 13 mm thin facade panels are also available in oversize and create a uniform building envelope.

The narrow facade slats generate a lively image with different surfaces in just one color tone.

The narrow facade slats generate a lively image with different surfaces in just one color tone.

The 3D elements not only impart a unique design character but also serve as sophisticated visual and sun protection.

The 3D elements not only impart a unique design character but also serve as sophisticated visual and sun protection.
