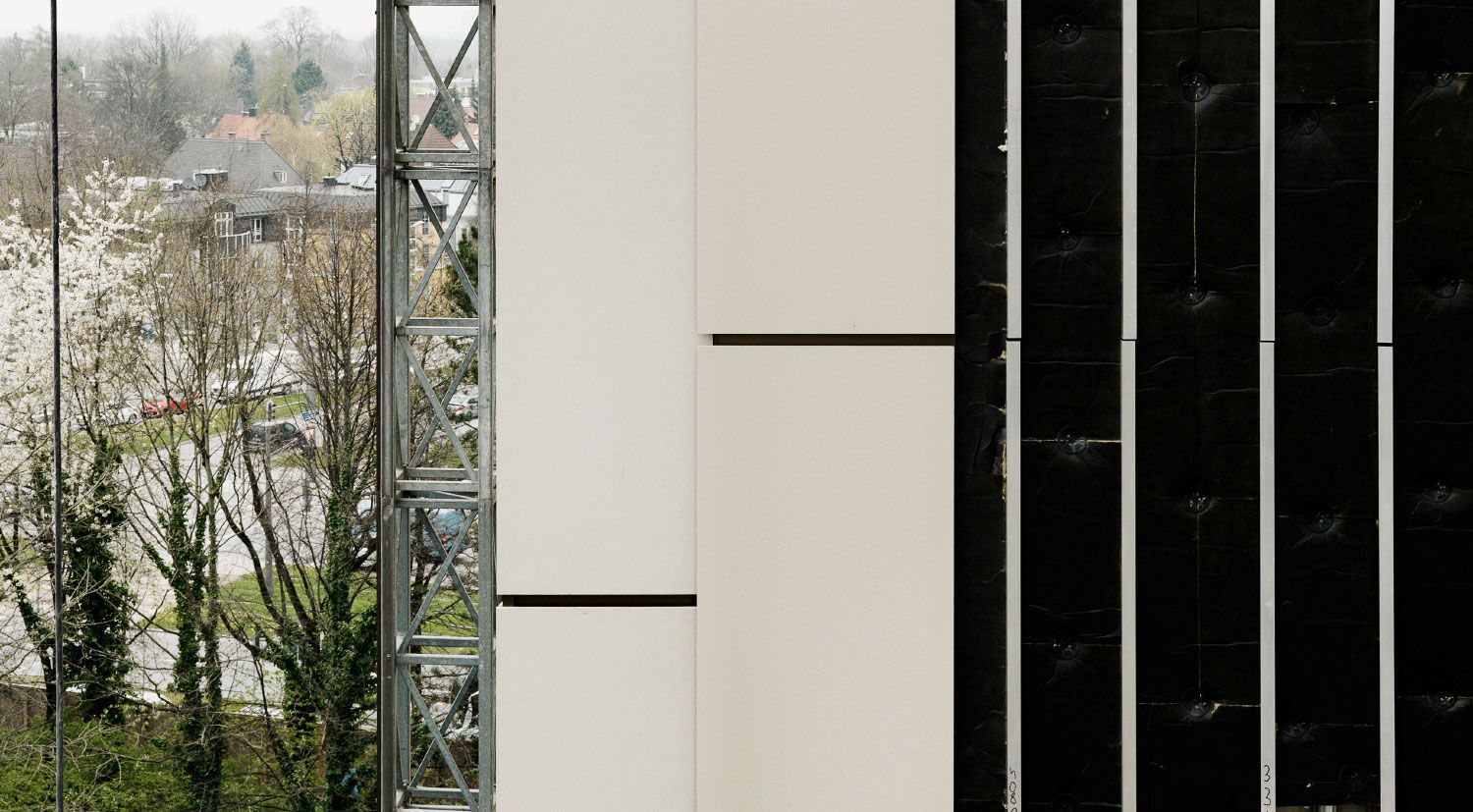

Ventilated curtain wall facade

The system of the ventilated curtain wall facade (VCWF) is characterised by a constructive separation of the two components, insulation and cladding. Since the space created in between regulates the heat management of the building, the characteristic structure of the VCWF leads to a number of advantages in terms of building physics and economics. Besides individual freedom of shape and colour of the fibreC products, visible or concealed fixings can achieve additional aesthetic effects.

Undercut anchor

Concealed - Panels can be fastened with metal clasps or alternative project-specific substructures and special undercut anchors, which are not visible on the rear side. The position of the substructure or type of agraffes (single or double agraffes) depends on the respective load application.

Rieder Power Anchor

Concealed - Panels can be fastened with metal clasps or alternative project-specific substructures and special Rieder Power Anchor non-visible on the rear side. The position of the substructure or type of agraffes (single or double agraffes) depends on the respective load application and has to be evaluated by the processor in terms of design.

Bonding

Concealed - Panels can be mounted invisibly on an aluminium substructure by means of force-locking bonding.

plug & play for formparts

Concealed - The jointed formed parts are connected using different installation brackets depending on size. As a system supplier, Rieder provides coordinated components, resulting in an integrated solution from a single source. The simple anchorage system allows on-site adjustment, high fitting accuracy and concealed installation. The installation options are compatible with all standard supporting structures and are a time-saving, economical and sustainable alternative. For the installation of formparts. Rieder offers a library of standard details with typical vertical and horizontal sections as well as details for fire barriers, connections for glass facades, shutter boxes, ceiling cladding, roof connections and column cladding. Based on project experience, a large collection of prepared special solutions for mounting on a wide variety of building and facade types is also available.

öko skin hidden fix

Concealed - The invisible installation system hidden fix for öko skin facade slats in the standard format 147 x 1800 mm allows a simple and quick installation.

Rivets

Visible - The panels can be fastened with rivets to a metal substructure with a positive fit. Preferably, the substructure consists of vertical profiles, which are mounted to the wall using wall bracket holders.

Screws

Visible - The panels can be fastened to a metal or wooden substructure with suitable screws. The substructure consists of vertical profiles, if possible, which are mounted to the wall using wall bracket holders.

From the idea to the finished facade

Rieder´s facade specialists and their well-established network are available to support architects and planners in all project steps, from the early planning phase to implementation. R2R “Rendering to Realisation” describes Rieder’s integrative approach to developing a holistic solution for building envelopes.
